| 起源の場所: | 中国 |
| ブランド名: | Dongdai |
| 証明: | 9001 |
| モデル番号: | QXS-12 |
| 最小注文数量: | 1セット |
|---|---|
| 価格: | Negotiatable |
| パッケージの詳細: | 輸出polywood |
| 受渡し時間: | 3〜5週間 |
| 支払条件: | T/T,WeChat Pay,Alipay メールで受け取る |
| 供給の能力: | 年間1000セット |
| スタンダード: | ISO | 材料: | 合金鋼 |
|---|---|---|---|
| 製品名: | ハンガーネジ | 色: | どんな色 |
| 表面処理: | 研磨 | 仕上げる: | プレーン、YZP |
| サービス: | OEM | パッキング: | 顧客の要求に従って |
| サンプル: | 利用できる付属品 | プール幅: | 12m |
| プールの深さ: | 3.0-7.0m | 処理能力: | 30m3/h |
QXS Bridge-Type Sand Suction Machine – Safe, Easy-to-Operate & Customizable Desanding Equipment
To Our Customers:
We offer fully customizable sand removal solutions tailored to your specific requirements. Please feel free to share your technical parameters, process flow charts, or any other specific needs. We guarantee a quick response within 12 hours via email or online chat.
Technical Parameters
| Model Number | QXS-3 | QXS-4 | QXS-10 | QXS-12 |
|---|---|---|---|---|
| Tank Width B (m) | 3 | 4 | 10 | 12 |
| Gauge Lk (m) | B + 0.4 | |||
| Tank Depth H (m) | 3.0–7.0 (Customizable) | |||
| Tank Length L (m) | Customizable | |||
| Wheelbase L1 (mm) | 1500 | 2000 | ||
| Travel Speed v (m/min) | 1.5–2.0 | |||
| Travel Motor Power N (kW) | 0.37 | 2×0.37 | ||
| Submersible Pump | ||||
| Flow Rate Q (m³/h) | 20 | 30 | ||
| Head h (m) | 2.0 | |||
| Power N2 (kW) | 0.75 | 1.10 | ||
| Number of Pumps | 1 | 2 | ||
| Steel Wheel Diameter d (mm) | 250 | |||
| Rail Specification (kg/m) | 15 (GB/T11246-1989) | |||
| Wheel Pressure P (kN) | 10 | 14 |
Structure and Working Principle

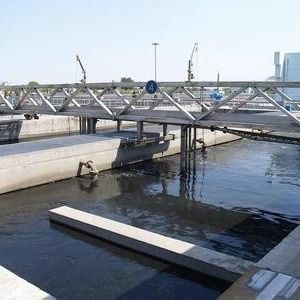

The equipment features a movable bridge-type structure with a pump suction mechanism. When idle, the machine remains stationed at the water inlet. During operation, the system is electrically controlled to drive the skimmer board, which collects and directs floating scum into a steel skimmer tank at the pool end. During reverse travel, the skimmer rake lifts clear of the water to prevent backflow. Meanwhile, settled sand is extracted from the tank bottom via a sand suction pump through a suction pipe, delivered to a sand collection tank, and then conveyed to a sand-water separator for further treatment. This reciprocating process ensures continuous sand removal and scum skimming.
Key Features
Efficient reciprocating sand suction and scum removal with a simple and robust structure.
Utilizes a vortex low-lift submersible pump for direct sand extraction without diversion, ensuring clog-free, wear-resistant, safe, and reliable operation.
Unidirectional skimming for a cleaner liquid surface.
Aerated grit circulation removes organic matter from sand, eliminating odor in discharged solids.
User-friendly operation supporting both local and remote control.
Main Parameters and Installation Size Chart
Outline and Installation Chart
Packing and Delivery
The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
About Us
The main business involves petrochemical industry treatment equipment, municipal water affairs, urban sewage treatment equipment, industrial sewage treatment equipment, domestic sewage treatment equipment, pure water equipment, reverse osmosis equipment, water supply purification, waste gas pollution treatment areas.
FAQ:
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
Q: What About Your Produce Time? What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .
Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Unionpay
