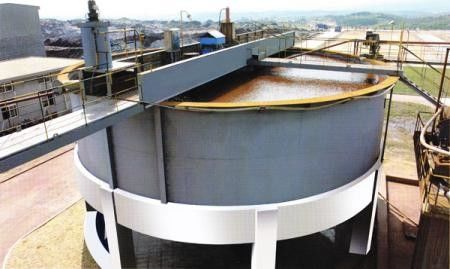

Perimeter Drive Sludge Suction Machine & Full-Bridge Sludge Scraper Equipment
Overview
Our company specializes in manufacturing a wide range of water and wastewater treatment equipment, including mechanical bar screens, air flotation units, dosing systems, sludge scrapers, cooling towers, decanters, degreasing systems, hydraulic screens, sand separators, filters, conveyors, thickeners, biofilters, softeners, and packaged sewage treatment plants.
Application
The ZBGX series center-driven single/double-pipe suction machine is designed for large and medium-sized circular sedimentation tanks with peripheral inlet/outlet and central sludge discharge. It is primarily used for suction and extraction of sludge in secondary sedimentation tanks within municipal wastewater treatment plants.
Technical Parameters
| Parameter / Model | ZBGX-16 | ZBGX-20 | ZBGX-25 | ZBGX-30 | ZBGX-35 | ZBGX-40 | ZBGX-45 | ZBGX-50 | ZBGX-55 |
|---|---|---|---|---|---|---|---|---|---|
| Tank Diameter Φ (m) | 16 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 |
| Deep Tank Depth H (m) | 3.5–4.5 (Customizable) | ||||||||
| Side Water Depth H2 (m) | 3.0–4.0 (Customizable) | ||||||||
| Peripheral Speed V (m/min) | 1.8–2.2 | ||||||||
| Travel Wheel Size (mm) | 400×120 | 420×150 | |||||||
| Motor Power N (kW) | 0.37 | 0.55 | 0.75 | ||||||
| Installation Dimensions (mm) | |||||||||
| Φ1 | 1100 | 1100 | 1200 | 1200 | 1500 | 1500 | 1800 | 1800 | 1800 |
| A | 2500 | 2500 | 2500 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 |
| Φ3 | 2600 | 3000 | 3800 | 4500 | 4500 | 4500 | 5000 | 6000 | 6000 |
| Φ4 | 2100 | 2300 | 3500 | 4000 | 4000 | 4000 | 4500 | 4500 | 4500 |
| H2 | 500 | 500 | 760 | 760 | 760 | 760 | 760 | 760 | 760 |
| B, H3, L | Customizable | ||||||||
| Wheel Pressure P1 (kN) | 9.0 | 11.5 | 15 | 19 | 22 | 25 | 28 | 30 | 32 |
| Center Platform Load P2 (kN) | 17 | 23 | 30 | 37 | 82 | 100 | 112 | 122 | 175 |
| Central Pivot Load P3 (kN) | 9.5 | 13 | 17 | 22 | 28 | 28 | 30 | 32 | 40 |
Key Features
Uniform Flow Distribution: The peripheral inlet and outlet channels are specially designed with sectional weirs to ensure even water distribution and collection.
Robust Drive System: Utilizes a combined helical and worm gear reducer to provide high torque output and operational reliability, equipped with overload protection.
Adaptive Sludge Pipe Configuration: Employs a single suction pipe for tanks ≤40m and double pipes for tanks >40m.
Non-Interference Sludge Removal: The horizontal perforated sludge suction pipe discharges sludge without disrupting density currents or flow stability.
Optimized Suction Design: The tapered suction pipe features a variably spaced orifice layout (small to large from inner to outer) to ensure balanced suction across the tank bottom, increasing sludge concentration and reducing reflux power consumption.
Flexible Skimming Options: Available with either plate skimmers or pipe skimmers (plate type as standard).
Ease of Control: Supports both local and remote automatic operation for ease of use and integration.
Outline and Installation Chart
End beam drive device 2. Sink cleaning brush 3. Slag hopper 4. Mud collection tank 5. Stabilizing flow cylinder 6. Central mud tank 7. Central support 8. Power collector 9. Suction and mud collector 10. Mud suction Pipe 11. Working bridge 12. Slag scraping rake 13. Scum baffle 14. Water outlet weir plate 15. Slag skimmer plate
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
